Artificial Intelligence

Artificial Intelligence or simply AI, could be defined as a technology that enables machines to simulate human learning, comprehension, problem-solving, decision-making, creativity and autonomy.

Beyond such introduction, there is no single, simple definition of Artificial Intelligence because AI tools are capable to performs tasks under varying and unpredictable circumstances without significant human oversight and can learn from experience and improve performance when exposed to data sets.

LogicalDOC contains a general purpose AI engine with which you can solve problems even not strictly related to document management, but with the advantage of being able to benefit from all the potential of a Document Management System to manage large volumes of data necessary for training.

Models

AI models are programs that implement an algorithm designed to solve a problem in the same way it would do a human brain, you can also look at them as artificial brains enabling systems to learn from data and perform tasks like analysis, prediction, and content generation.

At the time of writing, LogicalDOC supports this set of models:

  • Neural Network: useful to predict the category or nature of an object on the basis of input data
  • Classifier: uses Natural Language Processing(NLP) to catalog a naturally written text
  • Tokens Detector: uses Natural Language Processing(NLP) to extract tokens from a naturally written text

Samplers

Models cannot do anything without having been trained: like children, they must learn from experience in order to 'understand' how to solve a given problem.

In AI, this experience is built through a process called training that basically presents to the model a huge dataset of examples. The size and quality of the dataset impacts the model's ability to identify patterns in the data and therefore to understand the problem.

Samplers are those objects responsible for retrieving data used in training the models.

Samplers

A sampler is an object used to retrieve and prepare a dataset for the training of a model.

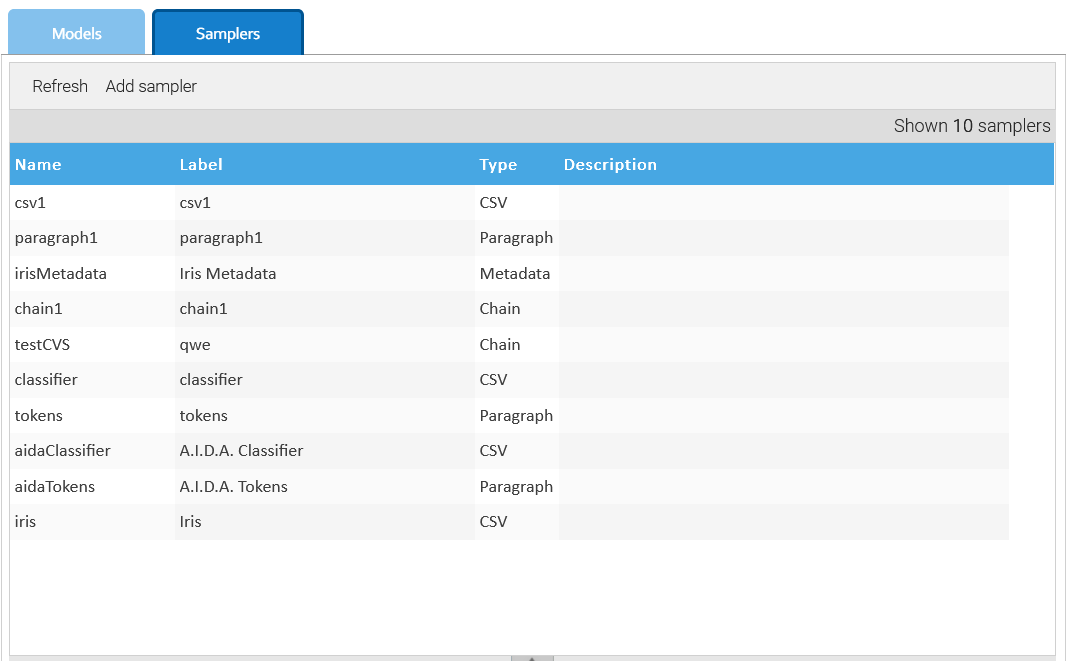

You handle the samplers in Administration > Artificial Intelligence > Models > Samplers

TITLE XXXX


You can count on different types of sampler with different settings:

SamplerDescriptionSettings
csv

Reads the contents of a CSV file extracting all the rows as string arrays.
Expected format of each resource is this one:

5.1,3.5,1.4,.2,"Setosa"
7,3.2,4.7,1.4,"Versicolor"
6.2,3.4,5.4,2.3,"Virginica"

This example will produce three rows of 5 elements each:

5.1, 3.5, 1.4, .2, Setosa
7, 3.2, 4.7, 1.4, Versicolor
6.2, 3.4, 5.4, 2.3, Virginica
  • Delimiter: the character used as fields delimiter
  • Quote: the character used to enclose the value of a field
  • Document: the CSV document that contains the data
paragraph

Extracts the paragraphs, interpreted as blocks of text separated by blank lines.
Expected format of each resource is this one:

A colleague of mine told me that the document 12356897 contains very important information, so I want to get it. Understood, but are you registered as LogicalDOC's user? If you are a user, just access the interface and then execute a search by document id = 12356897.

Where can I locate a specific file? I was not able to find what I was looking for. Ok, just enter LogicalDOC and search for document with ID -96668429, it is very easy. Sure! Easy and quick, many thanks for your hint.

The example above will produce two paragraphs.

  • Document: the text document that contains the data
metadataExtract samples from a list of documents. By default the extended attributes of the documents are considered as the features, and so all the documents in the referenced folder must share the same attributes scheme. With the Automation you may also extract whatever data for each document.
  • Folder: the folder that contains the documents to process
  • Category: name of the extended attribute that contains the category, optional
  • Features: ordered comma-separated list name of extended attributes used to store the feature values
  • Automation: an automation script used to extract a sample from a source document accessible via the dictionary key $document
chainCollects the samples extracted by a collection of other samplers
  • Chain: ordered list of samplers
